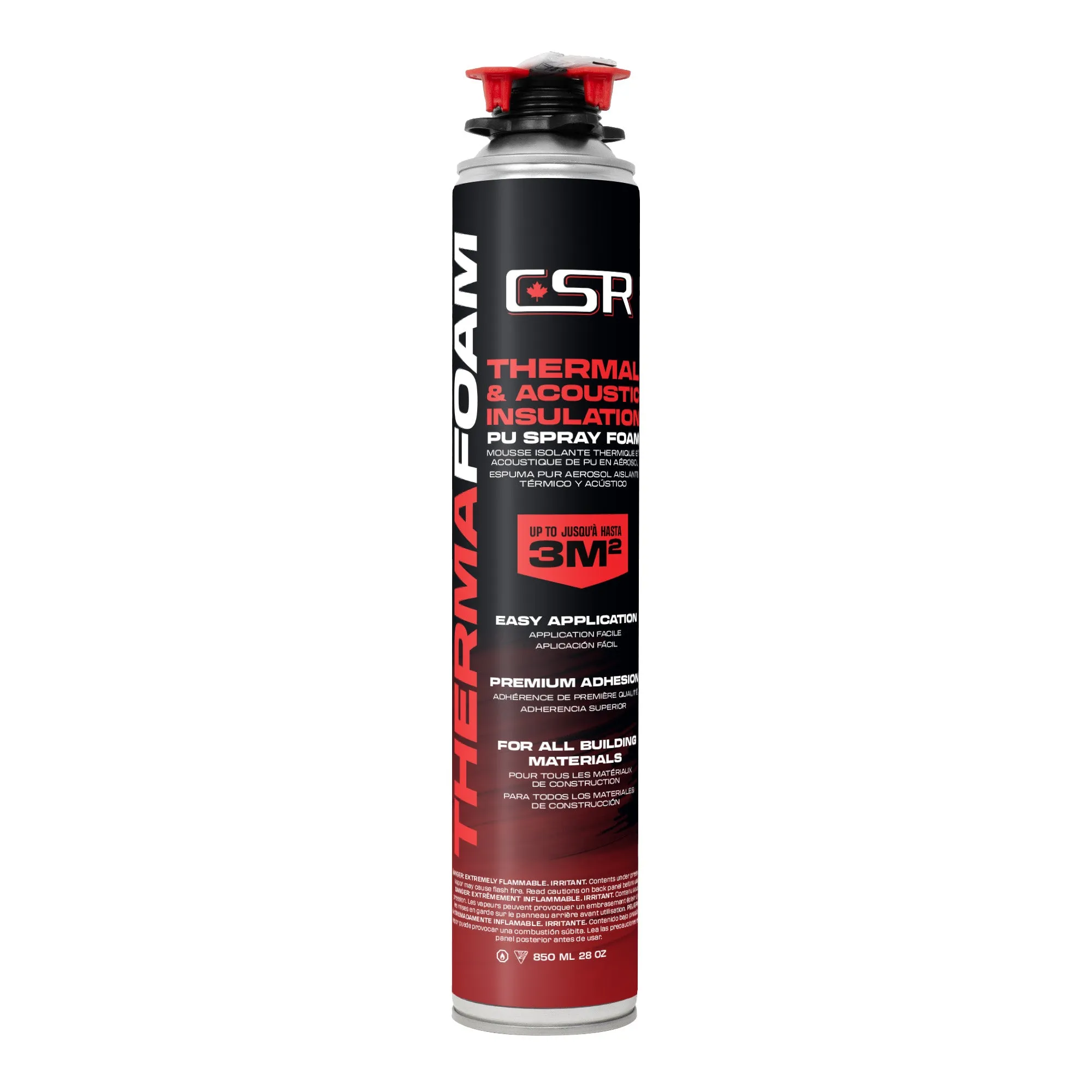

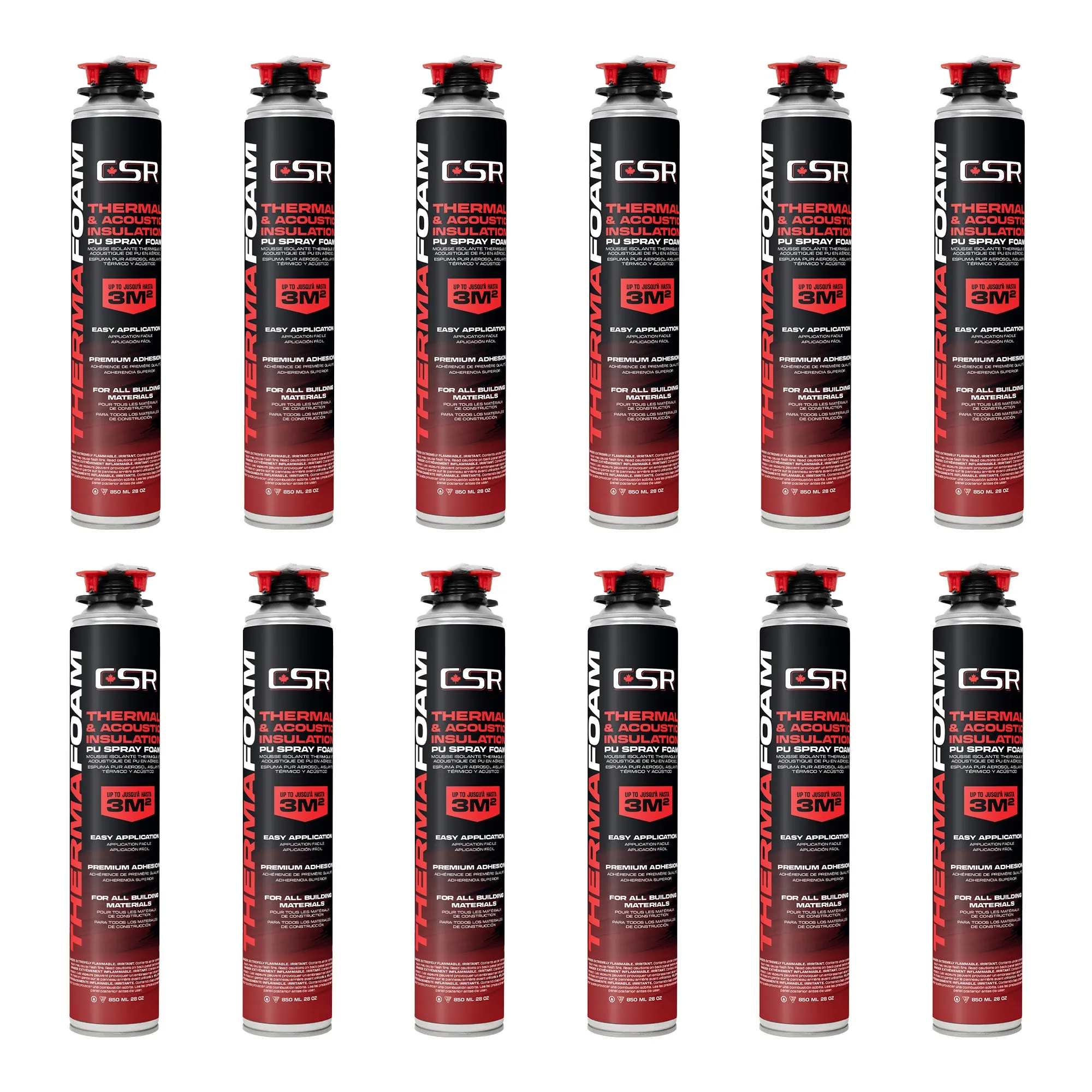

CSR Thermal & Acoustic Insulation Foam is a polyutherane based insulation spray foam for high quality heat and sound insulation in building and many more. Provides a matchless monolithic thermal insulation application without junctures, seams and gaps. An innovative alternative to traditional building insulation methods such as polystyrene, heat insulation boards (EPS and XPS), glass wool and rock wool.
Advantages
- Outstanding adhesion for most building materials
- Easy to apply to uneven, hard to reach surfaces
- Excellent R-Value: 5.66 per inch and thermal insulation value 0.025 W/(m.K)
- Does not allow the formation of thermal bridges and dew point
- Yields up to 20 board feet with 1-inch thickness if applied from distance of approx.16 inches with normal application speed
- Dense structure stops water, air, bugs, etc.
- Can be painted
Usage Areas
- Structural elements of buildings, attics, crawl space, interior wall insulation, balcony, loggia doors, window slopes, pipes, canals and tank kind round surfaces, roofs, facades, foundations, basements, floors, interior walls, inter-floor overlappings, interior partitions, ceilings and cellars
- Uneven and rough surfaces Car body and car trailers, boats, yachts, vessels and all kind of see vehicles
How To Use
- There are two nozzles to apply the CSR Thermal & Acoustic Insulation FoamL
- Nozzle A is used for vertical applications that provide wedge spray
- Nozzle B is for sealing applications
- Plug the desired spray nozzle into the barrel of the application gun until it clicks and screw the can onto applicator gun
- Shake well before use
- Always hold can upside down during application as much as possible
- The output speed of the foam can be regulated with the trigger and controlled with the adjustment screw on the back of the side of the gun
- Apply 12-18 inches away from wall at vertical application
- Apply 6-8 inches away from ceiling for horizontal applications
- Application should be between temperatures 41°F and 86°F
- For the best results, apply at 68°F
- The product can be applied at any desired thickness as long as it is applied by layers
- Thicker application allows for higher insulation value
- Recommended to keep the can attached to the applicator gun if used in multiple sessions
- Clean uncured PU foam with CSR Foam Cleaner
Safety
Contains isocyanic acid, polymethylenapolyphanylene ester
- H222 Extremely flammable aerosol
- H229 Pressurized container
- H332 Harmful if inhaled
- H373 May cause damage to organs through prolonged or repeated exposure
- H319 Causes serious eye irritation
- H315 Causes skin irritation
- H334 May cause allergy or asthma symptoms or breathing difficulties if inhaled
- H317 May cause an allergic skin reaction
- P280 Wear protective gloves, protective clothing, and eye and face protection
- PS284 In case of inadequate ventilation, wear respiratory protection
- P501 Dispose of in an approved waste disposal plant; contents and container to hazardous or special waste collection point, in accordance with local, regional, national and/or international regulation
